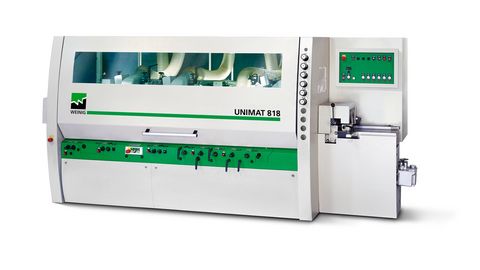

WEINIG Unimat 800: The powerhouse for heavy applications.

WEINIG Unimat

The WEINIG Unimat series impresses with an excellent price-performance ratio combined with outstanding quality. The Unimat 800 is the powerhouse in the Unimat series and includes a highly robust machine frame. The standard Unimat 800 is equipped with hydro outboard bearings and a strong feed system. Those who own this machine do not have to make any compromises even in multi-shift operation.

The Unimat 800 offers a perfectly harmonized application concept. Whether you are producing mouldings, wide profiles or you are simply pre-planing - with the Unimat 800, you are prepared for all requirements. Combined with mechanization, the machine offers incredible productivity.


Technical Details

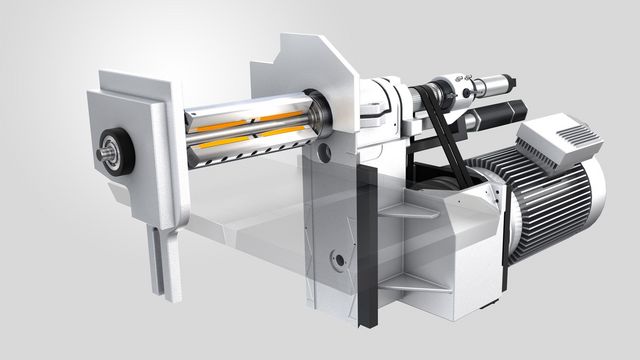

Hydro outboard bearing

WEINIG Unimat

At higher feed speeds, jointing is indispensable for achieving good surface quality. However, jointing also requires a very low tolerance in terms of the true running accuracy of the tools. This true running accuracy is achieved through hydro tools, which are supported at the front side of the machine by an outboard bearing. The standard Unimat 800 features hydro outboard bearings, guaranteeing high true running accuracy and high precision when manufacturing your products despite the large working width.

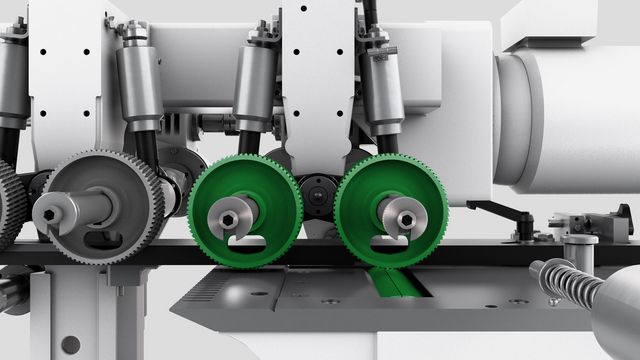

Machine infeed

WEINIG Unimat

Depending on the condition of the raw material, it may be advisable to have a strong machine infeed - especially with bent, damp or heavy pieces. The Unimat 800 has a strong, 3-roller infeed that guarantees secure feeding of the machine. Particularly when combined with infeed mechanization, the 3-roller infeed represents the optimal infeed for strips and boards.


Options for extension

WEINIG Unimat

Jointing system

Jointing technology and hydro tools produce excellent surface quality.

Learn more


WEINIG Unimat

EasyCom

EasyCom is a compact PC control system with workpiece-oriented user guidance directly on the Unimat 800 and intuitive operation via touchscreen.

Learn more



Areas of application

Profiled mouldings

WEINIG Anwendungen

Our core competence

Profiling mouldings of all types has always been WEINIG’s core competence. Profiling includes a wide range of end products that nevertheless set the same challenges for machine technology: high levels of profile precision with excellent surface quality and regular cuttermarks.

WEINIG technology is always setting new standards in this area. The basis for this are the solid machine bases with precise machine tables and the fence at exactly the right angle to this. The superiority of the WEINIG machines is seen overall when dynamics are brought into the equation: spindles with high true running accuracy, a strong feed system and the corresponding pressure elements.

The perfect interaction of these components guarantees smooth transportation in a defined position through the machine. The result is the legendary WEINIG quality of your products: high profile precision, excellent surface quality and regular cuttermarks.

Pre-planing

WEINIG Anwendungen

In industrial wood processing, material yield plays an ever greater role. Scanners are used in this context to identify places with defects and to cut them out. Pre-planing is necessary at the start of the entire chain in order to provide the scanner with a clean surface. Accordingly, chip removal should be minimal and a high feed speed is usually required.

In this segment, WEINIG offers both simple solutions with excellent value for money, as well as innovative solutions with unique technology: from hydro-tools to jointers, slanted spindles and floating spindles up to a feed speed of 300 m/min. As well as the necessary machine technology, WEINIG, of course, also offers suitable mechanization. We can meet your pre-planing needs perfectly!


Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

Unimat series product brochure (PDF, 3 MB)

Technical data

Open table
