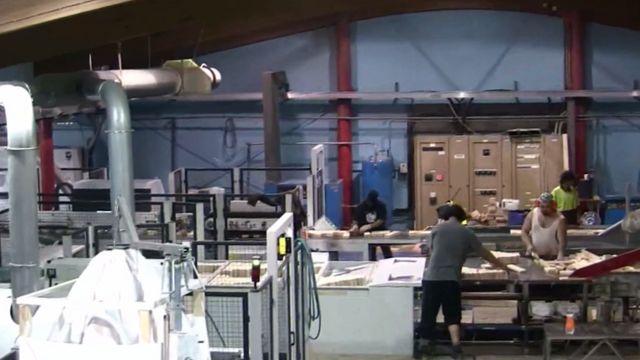

WEINIG CombiPact: The flexible line for vertical and horizontal profiles

WEINIG Kurzholzanlagen

This multi-purpose production line enables you to meet all demands — quickly and to the highest level of quality. Whether vertical, positive/negative, alternating shoulder or half shoulder jointings, everything is possible!

The double shaper unit is the outstanding characteristic of the CombiPact. This development with two shapers facing each other offers exceptionally strong capacity and high speed. The two shaper units are both connected to one basic body so the line is extremely compact and stable. The low-vibration construction ensures excellent results.

WEINIG finger jointing line for short timber pieces offers you

WEINIG CombiPact offers you

  • Frequency regulated shaper table feed
  • Fully automatic system for the higher performance area
  • Shaper combination in very compact construction form
  • Universal system for all types of finger joint
  • Almost all types of glue can be used
  • Glue amount and glue application monitoring (optional)
  • Maximum performance up to 150 parts/min can be processed
  • Press performance for front-end press up to 12 cycles per minute
  • Operation, statistics and diagnostics function using touch panel
  • Inclusive teleservice (remote maintenance) for improved customer support

Technical Details

Vertical finger joint

Vertical profile

The vertical finger joint is the most frequently produced type of finger joint in the world. It provides the highest performance in a packaged finger jointing line. The vertical profile is mainly applied in constructive woodworking, but is also used for building windows and frames. It is has the largest glue surface and is therefore the most stable of all finger joints.

Horizontal finger joint With WEINIG CombiPact

The positive-negative profile is the second most common profile in a shaper combination because the system only needs to be equipped with three scoring units instead of four and produces high quality visible joints.
The trapeze profile is also called “American Profile” because this finger joint originates from the US and is usually delivered with a finger joint length of 1/4 inch.

Horizontal finger joints are mainly used in furniture construction. The shoulder profiles provide, for example, table plates that look like parquet where only the straight butt joints are visible.

Horizontal finger joint With WEINIG CombiPact (special)

The half shoulder profile can be run in manual and in fully automatic lines.
The reverse shoulder profile is mainly used for the simplest lines where, sometimes, no scoring unit is used.

Both of these horizontal profiles are special profiles and are hardly used in ProfiJoint Combination because they only offer advantages with individual shaper lines.
The half shoulder profile can be run in manual and in fully automatic lines.
The reverse shoulder profile is mainly used for the simplest lines where, sometimes, no scoring unit is used.


Making good connections

Finger jointing is the best procedure for producing stable longitudinal joints. When the quality is right, lasting connections can be made that reach as far as Malaysia. Tiger Excellent has demonstrated this with a new show of faith.

Tiger Excellent Wood is a leading manufacturer of semi-finished products from the plantation wood "rubberwood" in Malaysia. Following positive past experiences with complete provider WEINIG, company boss Tiger You has recently made a number of additions to his value chain. With WEINIG, he has always found the components he needed to make his production more efficient and to improve the quality of his products. As a result, a close connection has been formed. Tiger You's most recent coup was to invest in a HS 200+ high-performance finger jointing line with a capacity of 240 parts per minute. In conjunction with the company's existing WEINIG scanner and cross-cutting system, the new technology has helped the company to achieve further increases in capacity with significantly higher wood recovery. Material and wood savings are boosted considerably by the GlueEye Vision automatic glue application monitoring and the Trimsaver measuring and positioning system, which can save 100,000 running meters of wood per year. Other priorities of the Malaysian entrepreneur included robust machine technology and simple operation. The reliable HS 200+ high-tech flat finger jointing line has allowed him to take his production to new levels despite some challenging climatic conditions and the basic qualifications of some of his personnel.

The right connection: left to right Jacky Tan (Tiger Excellent Wood), Dirk Bartens (WEINIG Grecon), Tiger You (Managing Director of Tiger Excellent Wood) and Sunny Wee (WEINIG Asia)

Further information


Simple, fast and sustainable: more details in a downloadable PDF document.

Product brochure CombiPact (PDF, 9 MB)
