The WEINIG PowerLock system Flexibility, performance and quality

PowerLock enables speeds up to 12,000 rpm; twice the feed speed of conventional machines. The tools can be changed in seconds. With PowerLock, you can double your linear production per day, slash unit costs and shorten delivery times – all with outstanding surface quality.

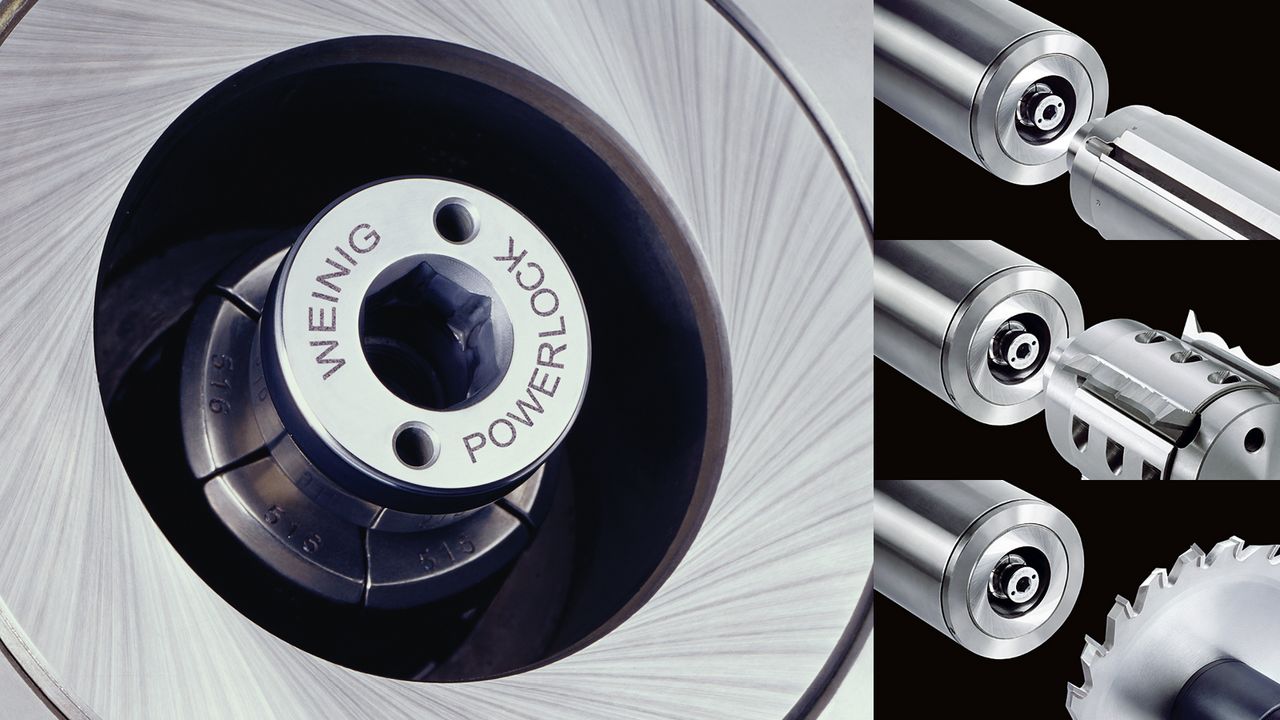

Tools with PowerLock clamping

These are not conventionally clamped but rather with the PowerLock holder, play-free, centrically and with maximum strength – in the moulder and in the tool grinding machine. At the push of a button, the clamping is released and the tool can be easily removed from the machine in the blink of an eye. Thanks to PowerLock clamping, the true running accuracy achieved on the grinding machine can be completely transferred to the moulder. There is no tolerance for fit and therefore no gyration of the tool!

3t of pull force makes the tool holder and tool into one unit. The result: The PowerLock system has more than double the rigidity of the hydro system. This rigidity and spindle speeds up to 12,000 rpm guarantee perfect surfaces at supreme feed speeds.
