WEINIG ProfiJoint Combination: ProfiJoint's highest expansion level

WEINIG Kurzholzanlagen

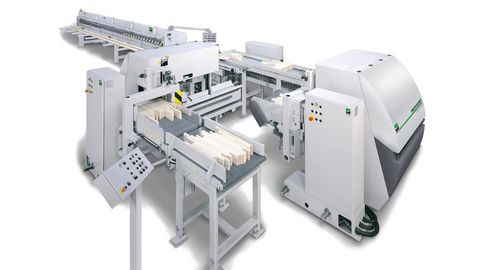

The ProfiJoint Combination consists of two shapers that process your residue wood with a high level of performance. By combining two shapers, the performance is doubled.

The shaping process on both sides takes place fully automatically. The 2-spindle system allows special profiles to be created. The ProfiJoint Combination may also be of interest to those who already own a ProfiJoint and wish to expand their capacity: the modular design of the ProfiJoint range allows subsequent upgrading of existing lines. This enables wood entry lengths of up to 900 mm to be processed.

WEINIG finger jointing line for short timber pieces offers you

WEINIG ProfiJoint Combination offers you

  • Creation of special finger joint profiles
  • Double performance of a ProfiJoint individual shaper
  • Also available as a completely automatic system
  • Vibration stop, package monitoring and splinter protection for high product quality
  • Maintenance-free Weinig shaper spindle
  • Automatic application of glue and precise dosing of glue
  • Centralized extraction connection from below
  • Teleservice (remote maintenance)
  • Low vibration and heavy cast iron construction of the shaper unit

Technical Details

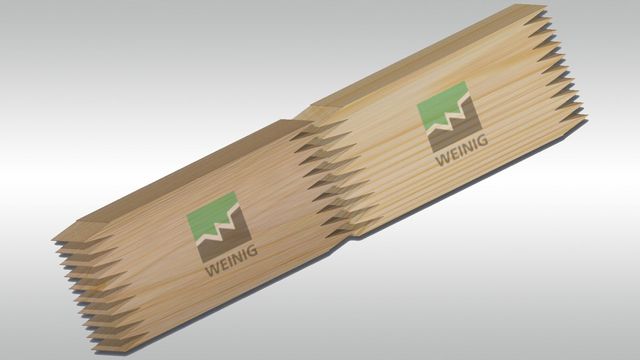

Vertical finger joint

Vertical profile

The vertical finger joint is the most frequently produced type of finger joint in the world. It provides the highest performance in a packaged finger jointing line. The vertical profile is mainly applied in constructive woodworking, but is also used for building windows and frames. It is has the largest glue surface and is therefore the most stable of all finger joints.

Horizontal finger joint

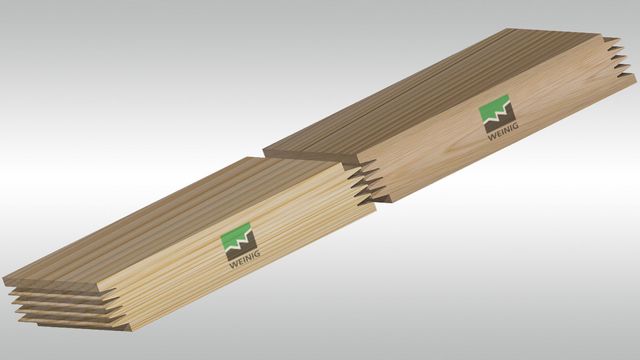

Reverse shoulder profile

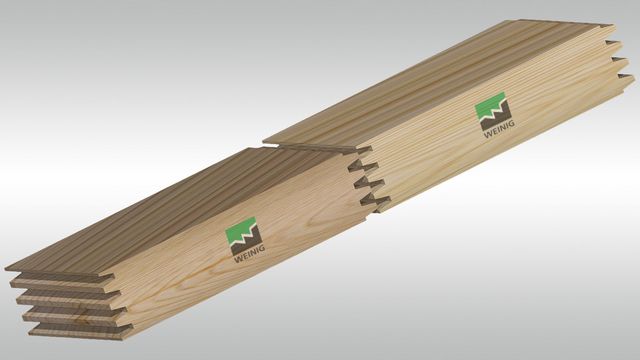

Trapeze profile

The half shoulder profile is the second most frequent profile that is run, because it can be used with individual shapers as well as in manual to fully automatic lines. The reverse shoulder profile is mainly used for the simplest lines where, sometimes, no scoring unit is used.

The trapeze profile is also called “American Profile” because this finger joint originates from the US and is usually delivered with a finger joint length of 1/4 inch. Horizontal finger joints are mainly used in furniture construction. The shoulder profiles provide, for example, table plates that look like parquet where only the straight butt joints are visible.


Making good connections

Finger jointing is the best procedure for producing stable longitudinal joints. When the quality is right, lasting connections can be made that reach as far as Malaysia. Tiger Excellent has demonstrated this with a new show of faith.

Tiger Excellent Wood is a leading manufacturer of semi-finished products from the plantation wood "rubberwood" in Malaysia. Following positive past experiences with complete provider WEINIG, company boss Tiger You has recently made a number of additions to his value chain. With WEINIG, he has always found the components he needed to make his production more efficient and to improve the quality of his products. As a result, a close connection has been formed. Tiger You's most recent coup was to invest in a HS 200+ high-performance finger jointing line with a capacity of 240 parts per minute. In conjunction with the company's existing WEINIG scanner and cross-cutting system, the new technology has helped the company to achieve further increases in capacity with significantly higher wood recovery. Material and wood savings are boosted considerably by the GlueEye Vision automatic glue application monitoring and the Trimsaver measuring and positioning system, which can save 100,000 running meters of wood per year. Other priorities of the Malaysian entrepreneur included robust machine technology and simple operation. The reliable HS 200+ high-tech flat finger jointing line has allowed him to take his production to new levels despite some challenging climatic conditions and the basic qualifications of some of his personnel.

The right connection: left to right Jacky Tan (Tiger Excellent Wood), Dirk Bartens (WEINIG Grecon), Tiger You (Managing Director of Tiger Excellent Wood) and Sunny Wee (WEINIG Asia)

Further information


Simple, fast and sustainable: more details in a downloadable PDF document.

Product brochure ProfiJoint Combination (PDF, 6 MB)
