WEINIG Through-feed press: Your press for almost all glued-wood construction products.

WEINIG Durchlaufpresse

Using the through-feed press DKK, the feed-in line EUB and the following edging saw your can press all glued-wood products into a perfect strand and, if needed, cut them to fixed end lengths with the following edging saw. For example, the DKK can be used to produce all product for constructive timber house construction, such as glued laminated timber, double and triply beams. Because of the high speed of the strands from up to 160 m/min, the through-feed press DKK is also suitable for producing glued beams in high speed lines.

Your benefits:

  • High quality end products - by introducing the timber from all sides into the through-feed press, it is possible to have pressing without offsetting.
  • High process safety - the rigid top pressure prevents the timber strand from buckling.
  • The pressing power set is maintained permanently using hydraulic press cylinders.
Prices
x

Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

The WEINIG through-feed press offers you

  • Pressing without stopping
  • Cutting (sawing) without stopping
  • All offset joints are realigned
  • Can be combined with all high-performance finger joint shapers
  • Direct planing after the press is possible

The WEINIG through-feed press DKK offers you

  • High quality of the end product by processing from all sides
  • The through-feed press enables pressing without offsetting.

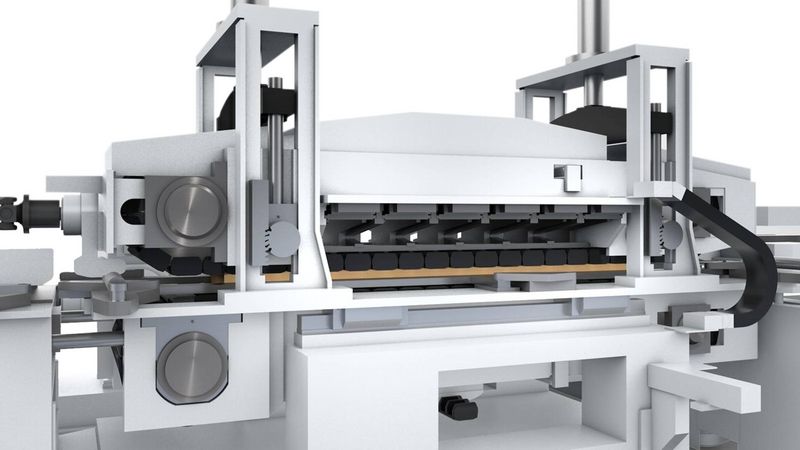

  • Hardened plate chain for high durability
  • Pressing in the throughfeed, without stopping
  • Automatic cross sectional changing
  • Adjustment via the center or the fixed side possible
  • Continuous monitoring of the process (pressure and slippage)
  • Segmented, pneumatic side pressure elements
  • Highly dynamic edging saw with capacity of up to 20 cuts/min.
  • Feed back of the braking energy

References


Further information

Further images

Feed-in line, through-feed press and flying edging saw, for continuous production

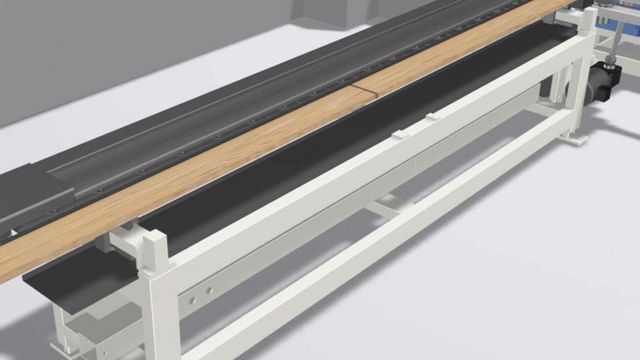

The frequency regulated feed in accelerates as in Formula 1 and runs with differential speed before the timber pieces come together (gentle joining).

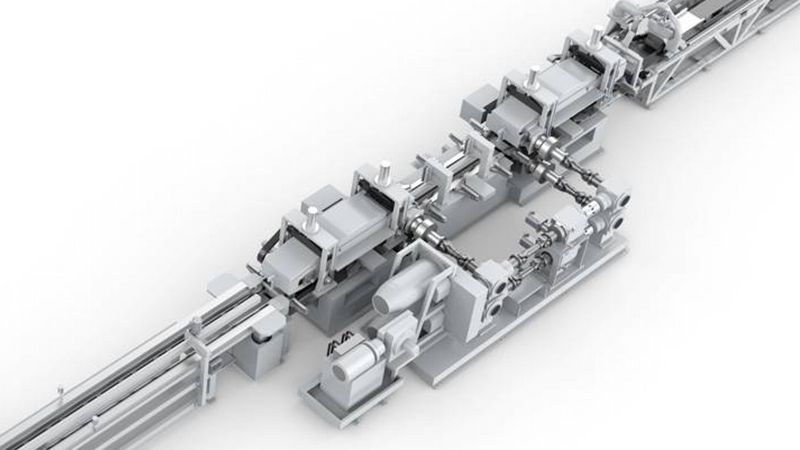

The DKK consists of a thrust unit and a braking unit. Here the pressing time and the pressing pressure are monitored. The braking unit also functions as a generator (recuperation) and recycles kinetic energy into electrical energy.
