WEINIG ProfiRip KRD 310: The robust, high-performance double arbor ripsaw

The ProfiRip KRD 310 works with the thinnest kerf, ensuring optimal utilization of the raw timber. The system is ideal for large cutting heights of up to 180 mm and impresses with its precision cutting and outstanding throughfeed.

The robust construction and solid pressure unit also allow the most difficult materials to be processed.


The WEINIG ProfiRip series provides

  • High performance potential
  • Maximum stability and productivity — even with extreme loads
  • Glueable cut
  • Outstanding user-friendliness
  • SafetyPlus anti kick-back device
  • Can be optimally integrated into system solutions
  • Up to 6 movable saw blades

The WEINIG ProfiRip KRD 310 provides

  • Thin kerf
  • Large performance range
  • Robust, long-lasting construction
  • Reliable material throughfeed

Technical Details

Double-sided prism guide

The double-sided prism guide of the feed chain is completely play-free. The accurate workpiece transport that this achieves is a prerequisite for precise cutting results. The specially harmonized alloys also guarantee a long service life of the feed system.

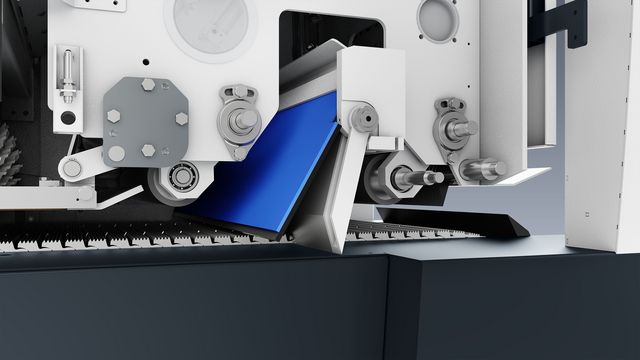

SafetyPlus

SafetyPlus provides optimal protection for the machine operator. An additional Kevlar curtain complements the conventional splinter curtain. This optimally seals the danger zone. This patented safety feature is standard with all WEINIG rip saws.


Options for extension

Powered top pressure rollers

The powered pressure rollers enhance throughfeed through the machine, particularly with wet or frozen materials.

Learn more

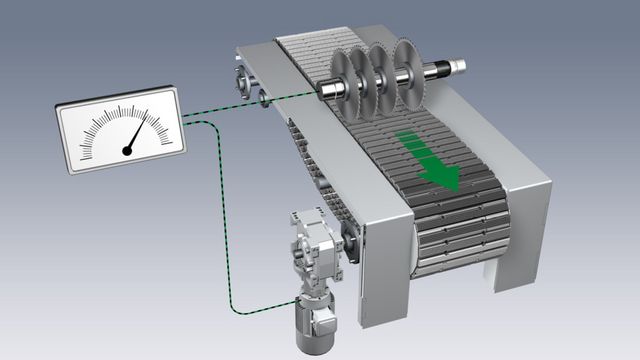

SpeedControl

Monitors the load on the saw motors and regulates the feed in case of potential overload. That way, you are always in the green zone.


Spikes

Spikes on the chain enhance the grip on the workpiece.

Learn more


References

Pushed to the limits

Group photo with the test candidate: Managing Director Stefan Wyss (center) with Enrico Baier of Raimann (left) and Erik Barmettler of WEINIG HOLZ-HER Schweiz

Every innovation must pass an acid test at some stage. The new ProfiPress 450 Speed multi-blade buzz saw was not given a VIP pass at Josef Wyss AG in Büron, Switzerland.

A picture-perfect test scenario: The Wyss sawmill produces glulam lamellae, crate and packaging products as well as construction timber. In 2006, the company also invested in a chipper and circular saw line in addition to its reciprocating saw. The slab timber is cut with an edger. The latter was reaching the end of its service life at Wyss. "Repairs were piling up. We were also not sufficiently flexible with our old system," says Stefan Wyss. "As a satisfied customer, we wanted to give WEINIG the opportunity to test its prototype," he adds. In contrast with other machines with a chain bed on the market, the ProfiRip 450 Speed has a roller feed. This is particularly useful for softwood sawmills such as Josef Wyss AG, for whom throughput capacity is a priority. "The objective was not to achieve higher cutting volume," explains Stefan Wyss.

"The advantage of higher added value was much more important to us." The multiple cutting and processing of different widths ensures better use of the raw material. Furthermore, the top saw shaft achieves higher cutting quality. And there are even more plus points for the new machine: "Previously, cutting on the edger was highly inflexible. With the three-fold blade adjustment, we are completely flexible," says Stefan Wyss. Wyss can also process different panel widths interchangeably without having to adjust the system. Conclusion from the test phase: The new ProfiRip 450 Speed is a robust machine for day-to-day sawmill operations that can also achieve high feed speeds.

Source: Holzkurier

Ready for the future with solid wood panels.

WEINIG Referenzen

Since 2001 the hardwood sawmill owner Walter Ohnemus has been running a cutting line. In 2011 he dared to take the next step towards further processing: solid wood board production in Kappel-Grafenhausen with the ProfiPress T 3500 from Dimter.


Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

ProfiRip series brochure (PDF, 4 MB)

Technical data

Open table
